Description

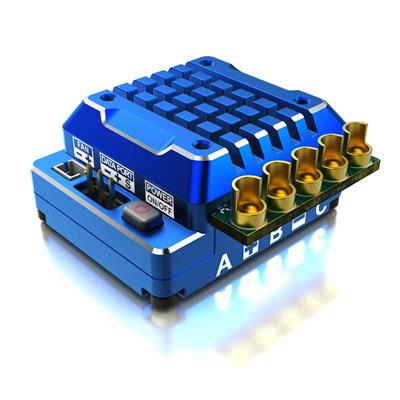

Toro TS 120A ESC for 1/10th Scale Car is designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit with 2S lipo.
The specially designed alloy case keeps it super cool.
BRCA Legal.
Specifications
Weight
45g (w/o wire)
Constant/Burst Current
120A/760A
Motor Compatible
Brushless Sensor & Sensorless
Car Compatible
1/10 and 1/12 Buggy and Truck
1/10 and 1/8 Crawlers
Motor Limits
5-6S NIMH or 2S LIPO–?3.5T(1/10 Buggy), ?5.5T(1/10 Truck)
8-9S NIMH or 3S LIPO–?5.5T(1/10 Buggy),?8.5T(1/10 Truck)
Resistance
0.0003ohm
Battery Cell Count
4-9S NIMH or 2-3S LIPO
BEC Output
6V@3A, linear
FAN
5V@0.2A , MAX 12.6V
