Features:
- 30mm aluminum cooling fan
- Aluminum casing helps protect the fan blades
- Compatible with 2S HV LiPo systems (8.75V max)
- Anodized black with silver chamferred edges
- Perfect for 1/12, 1/10 and 1/8 applications
- 2 pin connector for easy installation
- 30 Day Warranty against defects
Specifications:
Dimensions: 31x31x10.5mm
Mounting Pattern: 24mm x 24mm
Weight: 14 grams
Material: Aluminium & Plastic
Bearing: Dual Ball Bearing
Operating: Voltage 5V – 8.75V
Fan Speed: 28,000 @ 8.4 Volts
Current: 0.45A
Connector: JWT 2-Pin
Fan Applications: 1/10 Scale, 1/8 Scale or 1/12 Scale

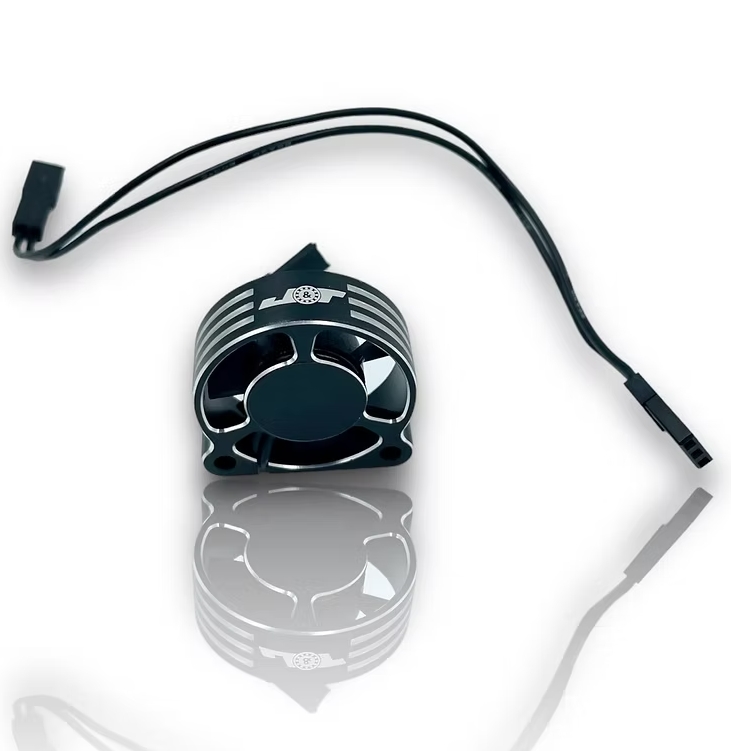

The J&T HV High Speed Cooling Fan is a high quality fan option developed for high performance applications. Features a durable aluminium casing that will help to protect the fan blades in the event of a crash. The aluminium case also helps to dissipate heat, allowing cooler operation of the fan motor at speeds up to 28,000 RPM. The increased heat dissipation also helps to prevent internal parts from expanding and causing failure.
The fan is compatible with 2S HV LiPo systems (8.75V max), has dual ball bearings, and is pre-wired with a 2 pin connector that can be plugged directly into the receiver or another source of power. Plus, the flat sides of the aluminium case make it easy to secure the fan directly to the chassis with double side tape, or by using a optional Fan Mount not included. With all these features combined, this fan is an excellent choice for ESC and motor applications ranging from 1/12 to 1/8 scale.
