Description
Servos are part of the “RC system” and thus the basis of a remote-controlled model.
Connected to the steering linkage, they convert stick or rotary movements on the transmitter into steering movements on the vehicle. In combustion vehicles, they also act as throttle servos, operating both the throttle valve of the carburetor and the brake. A servo that is too weakly dimensioned has a longer actuating time and a shorter service life when loaded. Therefore never save on the servo! A good servo does not have to cost a lot, but it makes the model more reliable and lasts for years.
In 1/8 and 1/10 scale RC cars, only standard size or low-profile servos are used.

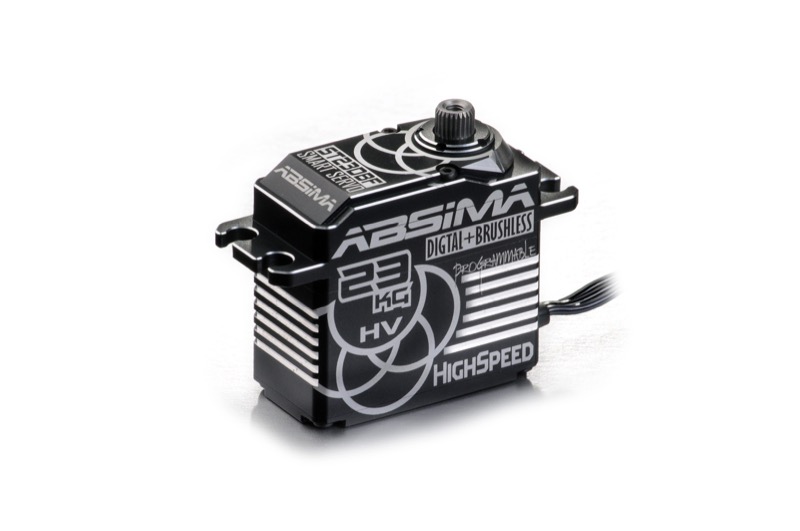

Our “Team Spec.” servos are mainly used in competition vehicles and offer a whole range of excellent features:
TECHNICAL DATA HIGHLIGHTS:
Servo Category:Â High-Speed
Operating Voltage:Â 4.8 – 8.4V HV
Torque / Speed @ 4.8V: 12.0kg / 0.078sec/60°
Torque / Speed @ 6.0V: 16.0kg / 0.066sec/60°
Torque / Speed @ 7.4V: 19.0kg / 0.056sec/60°
Torque / Speed @ 8.4V: 23.0kg / 0.050sec/60°
Technology:Â Digital
Motor Type:Â Brushless
Gear Material:Â Reinforced steel
Housing Material:Â AL6061 T6
Waterproof Rating:Â IP65 water-resistant
Bearing:Â Metal ball bearings (2)
Size:Â 40*20*37.5 mm
Weight:Â 80,5 g
Programmable:Â Yes with USB Interface Adapter # 2030110 (sold separately)
Not sure if these specifications are right for you? Here is an overview with even more information on all TEAM SPEC. SERVOS to compare:
