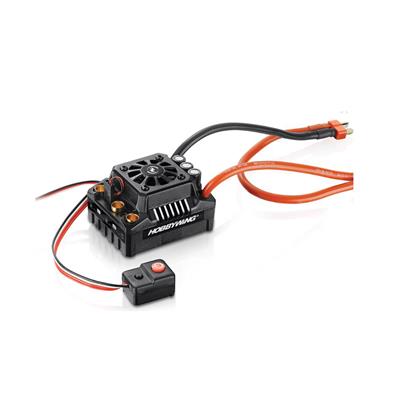

Description
High Reliability & Durability
Reliable hardware combined with advanced software allows the ESC to not only provide extremely high output but also protect itself timely from damages caused by overload. It significantly reduces the possibility of getting damaged by heavy load and improves the reliability and durability.
Great Flexibility & Versatility
The ESC has strong outbreak and stable output, so vehicle can do different moves without a problem, no matter aggressive start-up and wheelie, 720-degree flip (note 1), high speed running on straight tracks or flying over slopes. It always provide the power more than sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up. Note 1: Not every vehicle can do the 720-degree flip because of different chassis design. It?s known that HPI SAVAGE can do this move.
Applicable to All Weather Conditions
Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.
Super Built-in BEC
The world?s 1st 1/8th scale ESC adopted the super built-in BEC with the max. output current of up to 15A and switchable output voltage (6V/7.4V). It can drive different servos, high voltage servos at ease and bring amazing control feel to drivers.
Advanced and Secure Electronic Switch
The electronic switch with the lifespan of over 50000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design, completely solved problems like stuck reed and rust contact points caused by dust and moisture, switching off automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.
Plug and Play
Standard 6.5mm gold-plated connectors at the ESC?s output end are perfectly compatible with stock motor connectors of many popular 1/8th scale monster trucks like TRAXXAS?s and HPI?s. Moreover, TRAXXAS style or DEANS/T plug(s) have been soldered to the ESC?s input end for different battery connectors, driver can plug and play
and free from possible re-soldering work. For perfectly matching the mounting holes on TRAXXAS chassis, we have added some mounting holes to the ESC case accordingly.
Wide Applicability
The ESC provides the optimal upgrade solution for many popular 1/8th scale monster trucks like TRAXXAS E-REVO & E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT.
It?s also applicable to other trucks and buggies.
Almost Maintenance Free
The whole ESC except the cooling fan is basically maintenance free. Besides, the fan has also adopted the special anti-shock design, reduced damage brought by frequent jumps of the vehicle, greatly reduced maintenance work to the fan.
Specification
Scale – 1/8th
Brushed/Brushless – BL
Sensored/Sensorless – SL
Waterproof – WP
Cont./Peak Current – 150A/950A
Input Voltage – 3-6S LiPo/9-18 Cells NiMH
BEC Output – Switch Mode:6V/7.4V?6A
Input Wires – Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires – Black-10AWG-200mm*3
Input Connectors – XT90 Plug
Output Connectors – 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan Size – 30x30x10mm
Voltage Range – 5-7.4V
Powered by – Powered by BEC
ESC Programing via
SET Button on ESC – Supported
LED Program Box – Supported
LCD Program Box – Supported
WiFi Module – Supported
Program Port – FAN/Program Port
Firmware Upgrade – Supported
Size – 59.8×48.0x36.8mm
Weight – 174g
Motors – SL BL Motors/SD BL Motors(only in SL mode)
Vehicles – 1/8thTouring Car/Buggy/TrucK
KV Rating/T Count – 4S LiPo:KV?3000;/6S LiPo:KV?2400(40XX Series of Motors)
